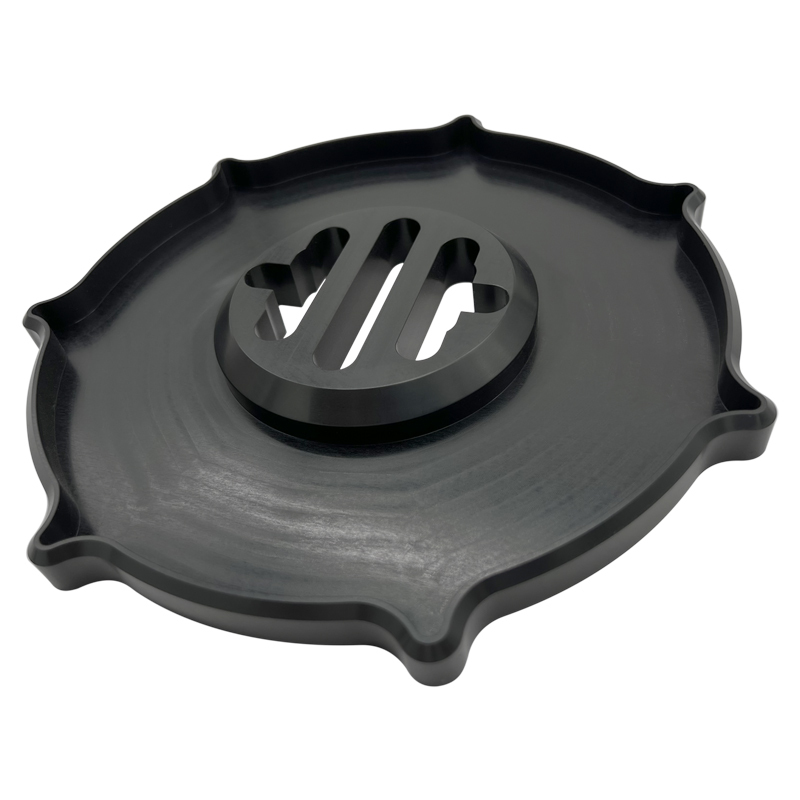

Precision CNC Adapter Flange
A high-performance mechanical interface engineered for industrial automation, motor coupling, and robotic precision systems.
Engineering Excellence
This adapter flange is manufactured using high-speed multi-axis CNC milling, designed to serve as a critical component in mechanical assemblies where precision alignment is non-negotiable.
The pocketed design minimizes rotational inertia while maximizing structural stiffness, ensuring that the component maintains concentricity even under high-torque conditions. The hard-coat anodized finish provides superior corrosion resistance in industrial environments.
Core Advantages
- 01 Precision Alignment: Guaranteed concentricity for smooth power transmission.
- 02 Weight Optimization: Pocketed structure reduces mass without compromising rigidity.
- 03 Industrial Durability: Hard-coat anodizing ensures long service life in harsh conditions.
Specifications
| Material | 6061-T6/7075 Aluminum Alloy |
|---|---|
| Processing | Multi-axis CNC Milling & Boring |
| Surface Treatment | Black Hard-coat Anodizing |
| Tolerance | ±0.01mm Flatness / Concentricity |
| Applications | Motor Coupling, Robotic Mounting, Automation |
Use Scenarios
Ideal for automated production lines, gear-box transitions, and high-precision motor mounting fixtures. This plate bridges the gap between different mechanical interfaces in custom automation setups.
FAQ
Can you accommodate custom bolt patterns?
Yes, we specialize in OEM customization. We can machine specific PCD (Pitch Circle Diameter) patterns to match your existing equipment.
What is the MOQ for this adapter?
We support small-batch prototyping (MOQ 1+) and large-scale industrial production runs. Contact us for a scalability plan.
