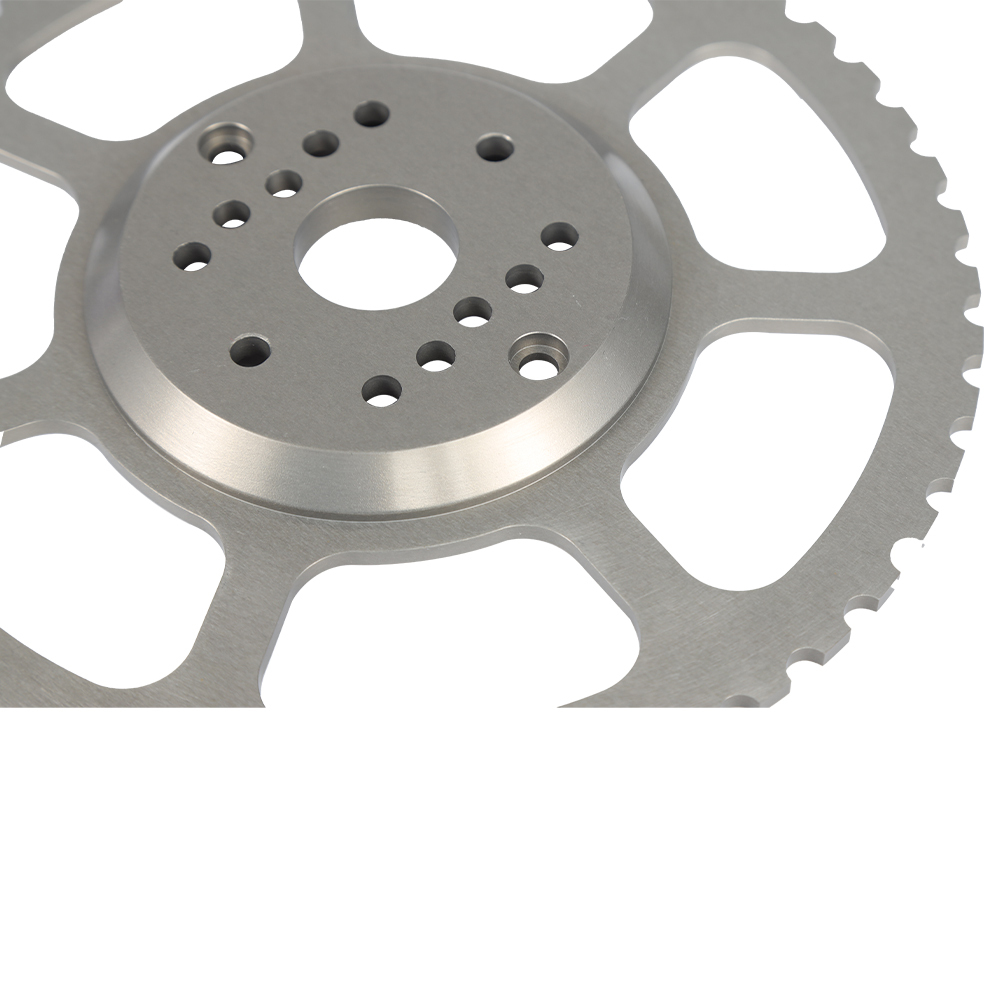

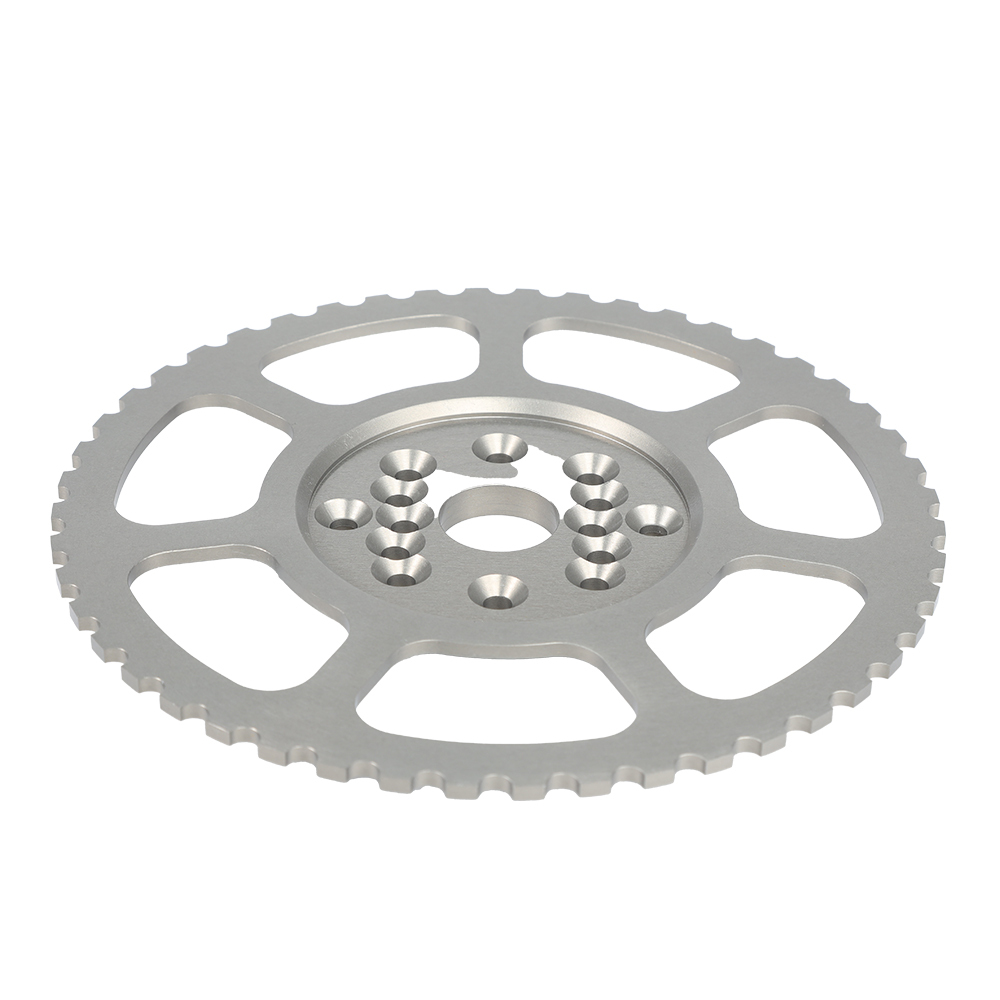

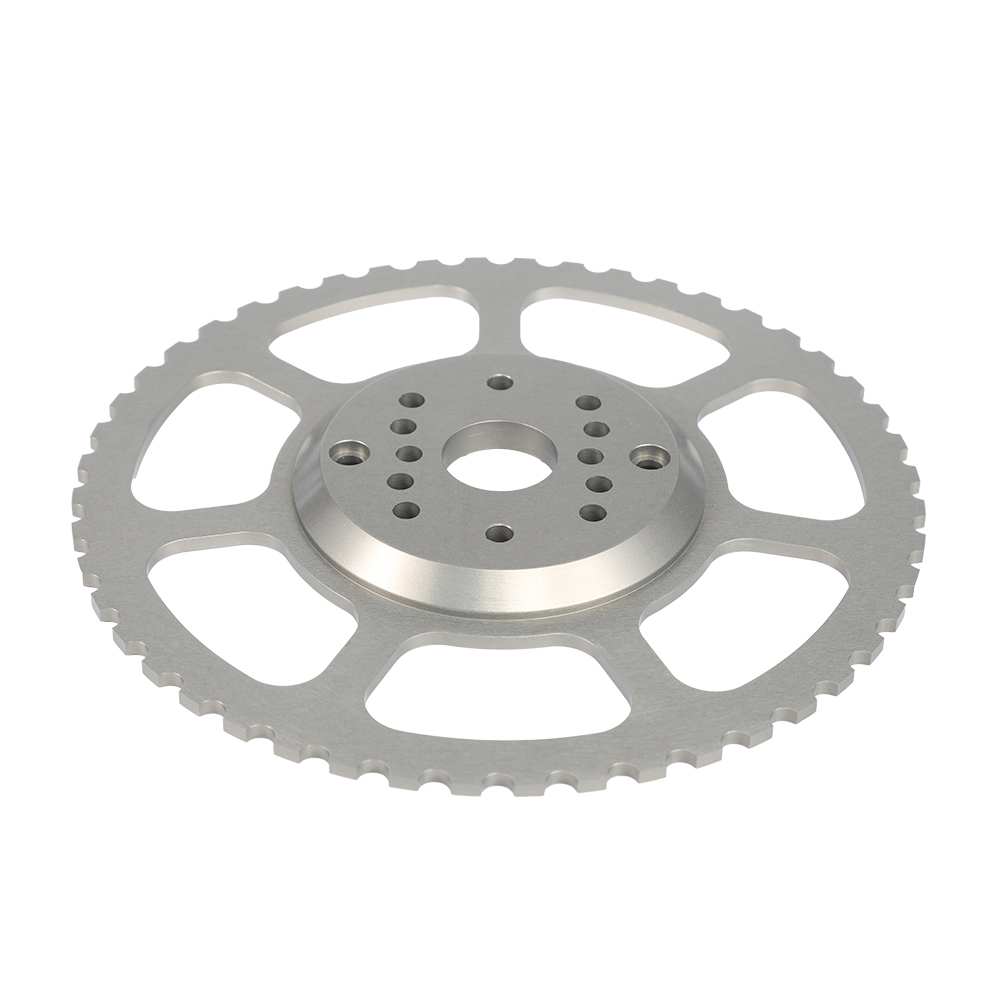

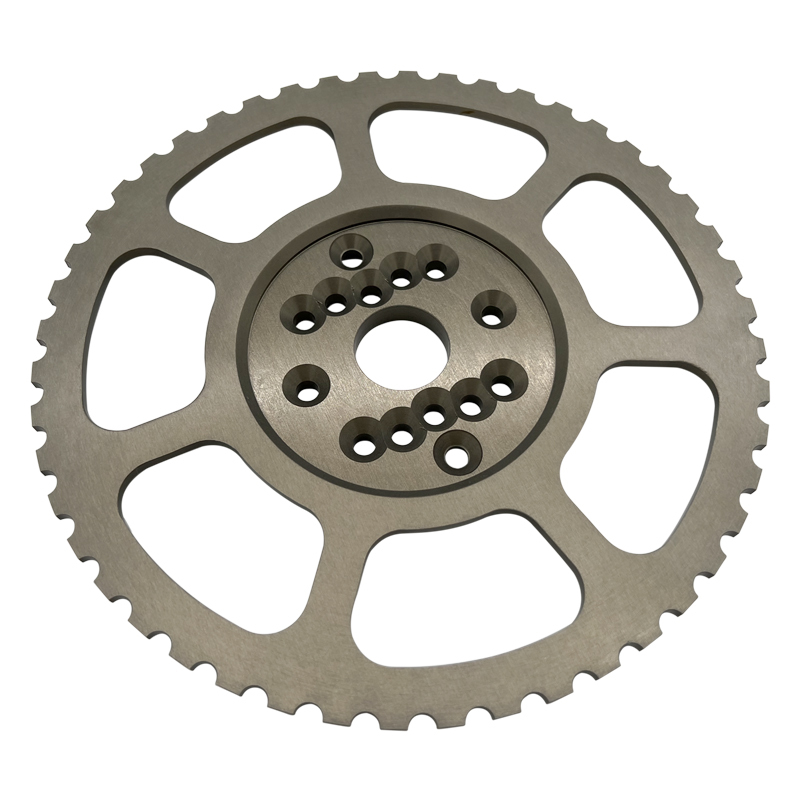

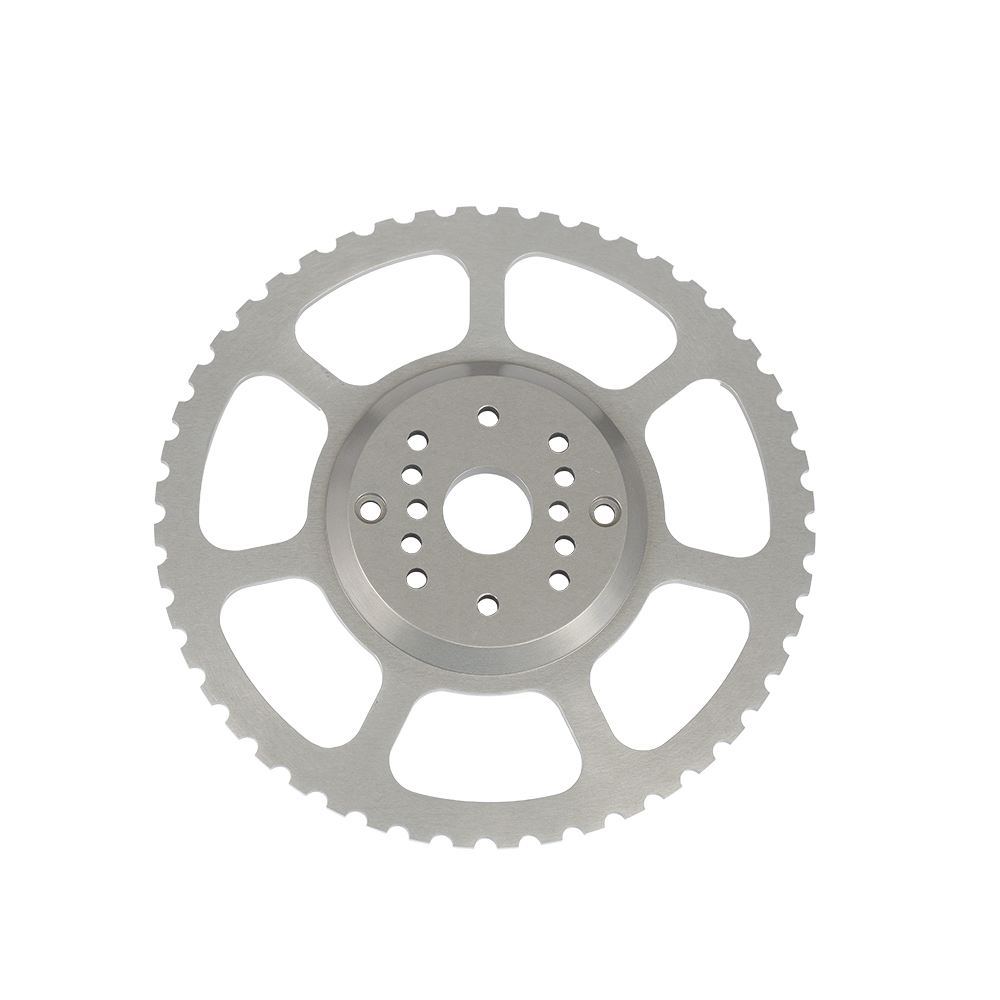

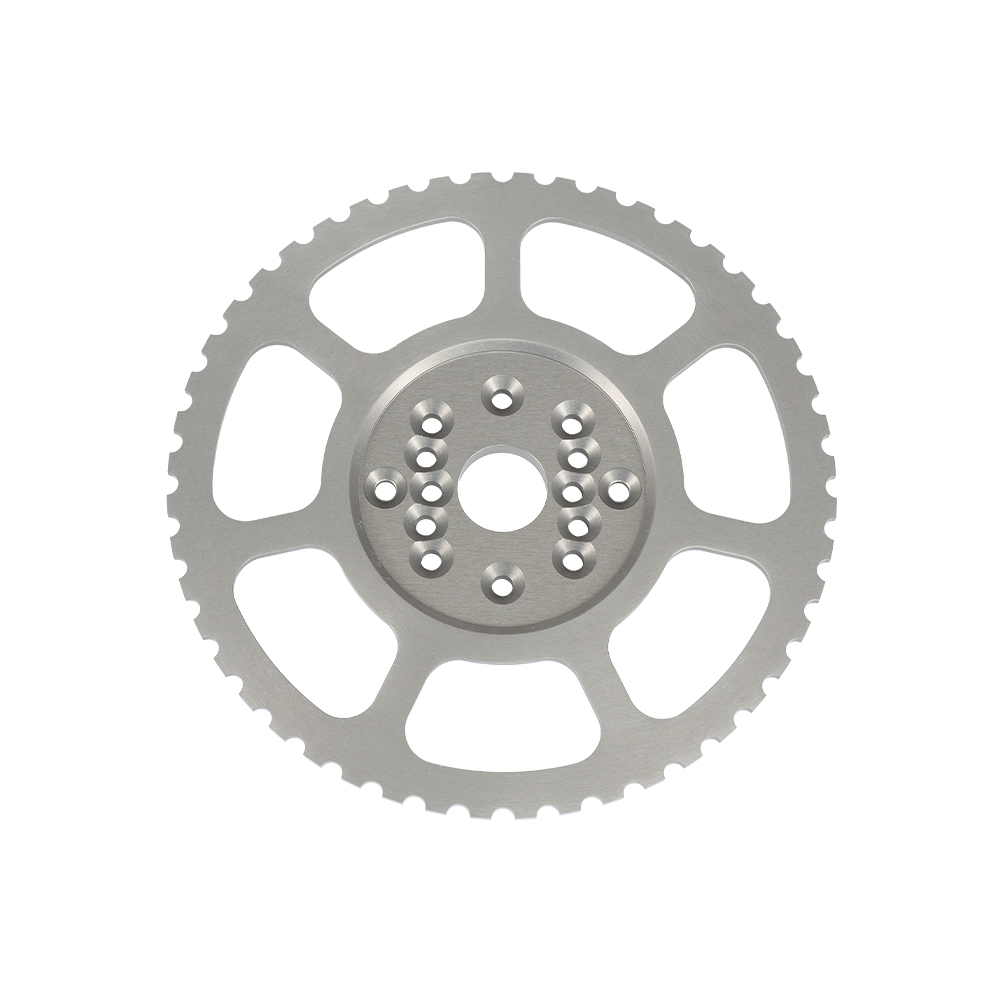

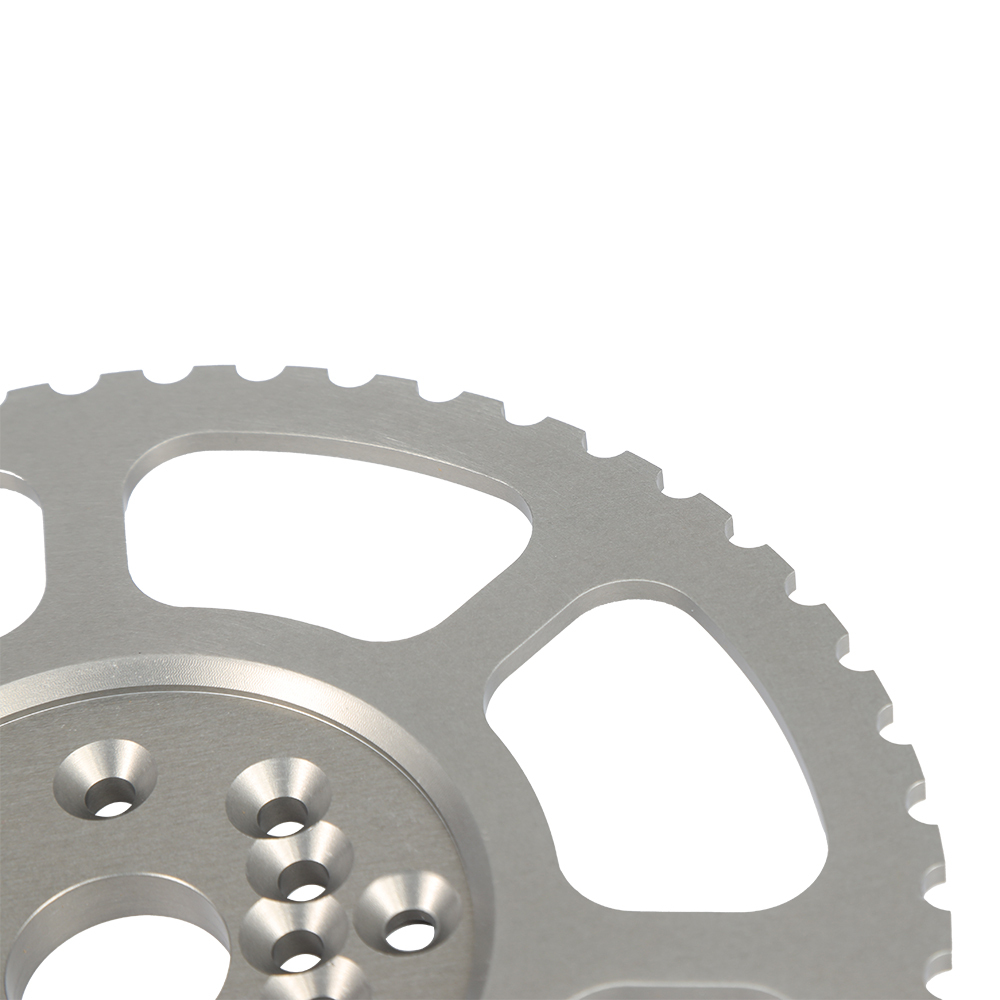

Precision CNC Machined Engine Flywheel & Crankshaft Trigger Wheel
Engineered for extreme performance, our CNC machined engine flywheels provide the critical balance and inertial mass required for high-RPM engine stability. Whether for professional racing, performance automotive upgrades, or industrial power transmission, our components ensure maximum reliability and torque efficiency.
Product Description
Our high-performance flywheels and trigger wheels are manufactured using advanced 5-axis CNC milling technology, transforming premium billet materials into high-tolerance engine components. By utilizing CAD/CAM integration, we ensure every tooth of the trigger wheel and every mounting hole of the flywheel meets the rigorous demands of modern internal combustion engines.
Beyond standard manufacturing, we provide comprehensive dynamic balancing services to mitigate harmonic resonance, which is essential for preserving the lifespan of crankshaft bearings in modified engine configurations.
Functional Role and Target Industries for Engine Flywheels
This engineered component serves critical balance and inertial mass functions, designed specifically for professional motorsports teams, industrial power equipment manufacturers, and automotive performance engineers. By employing our cnc machining company expertise, the flywheel meets the stringent demands of users requiring enhanced engine torque efficiency and RPM stability. custom cnc machining allows tailoring to specific engine configurations and operational parameters, providing a reliable solution for both racing and industrial power transmission systems. Its role within these target sectors supports seamless integration with crankshaft assemblies, contributing to system durability and operational consistency.
Technical Specifications and Manufacturing Excellence
Our precision cnc machining services utilize advanced 5-axis milling and dynamic balancing technologies to achieve a tolerance of ±0.005mm, ensuring exceptional dimensional accuracy. Materials include high-tensile 4140 chromoly steel and 6061-T6 aluminum billet alloys, chosen for strength, thermal stability, and weight reduction. Key design features such as exact trigger wheel tooth profiles enhance engine control system feedback for ECU timing accuracy. Surface treatments like black oxide or hard-coat anodizing improve corrosion resistance. This cnc machining manufacturer’s process is ISO 9001:2015 certified and includes thorough inspection protocols, providing traceable quality through FAI reports, all assembled within corrosion-inhibitor packaging for transport integrity.
Industry Applications and Operational Impact
The flywheel is widely applied in drag racing, drift motorsports, track-day automobiles, and industrial machinery where rotational inertia control and timing precision are paramount. Its dynamic balancing capabilities reduce vibration and mechanical stress on crankshaft bearings, increasing engine lifespan and reliability under extreme loads. Within performance automotive upgrade programs, custom cnc machining adapts flywheel geometry to optimize torque response and acceleration dynamics. In industrial applications, it serves as a timing reference or inertia coupling component, facilitating accurate synchronization with downstream equipment. This solution enables manufacturers and engineers to meet rigorous compliance standards and achieve measurable improvements in operational efficiency.
Product Advantages
Dynamic Balancing Excellence
Precision-balanced to eliminate rotational vibration, providing smoother engine operation at RPM ranges exceeding 10,000+.
Optimized Rotational Inertia
Lightweight pocketing designs allow for faster engine acceleration without sacrificing the inertia required for smooth idle stability.
Advanced Material Science
Utilizing high-tensile 4140 chromoly steel or 6061-T6 aluminum to withstand extreme thermal expansion and mechanical stress.
Perfect Signal Accuracy
The CNC-machined trigger wheel profiles are cut to exact tolerances, ensuring the ECU receives precise crankshaft position signals for optimal timing.
[Insert High-Resolution Product Detail Image: 1200 x 600 px]
Recommended: Macro detail showing CNC machining texture and gear tooth finish.
Structural Design and Manufacturing Integration
The design of the high-performance flywheel reflects modular integration principles, enabling compatibility with diverse engine and transmission systems. Our cnc machining company applies custom cnc machining techniques to tailor material thickness, pocket geometry, and trigger wheel machining in alignment with specific mechanical requirements. The use of billet alloys combined with precision cnc machining services ensures structural integrity and repeatable component profiles. Advanced balancing technology incorporated within the manufacturing system decreases harmonic resonance, supporting stable high-RPM operation without compromising durability or increasing system complexity.
Performance Enhancement and User Value
By leveraging precision cnc machining services, the flywheel delivers superior rotational stability and torque efficiency, significantly reducing engine vibration and extending crankshaft bearing life. The exact trigger wheel profiles facilitate precise crankshaft position sensing, enhancing engine management system performance. This product’s lightweight design promotes faster engine response while maintaining strength to withstand continuous high-load conditions. Ultimately, the flywheel manufactured by our cnc machining manufacturer offers improved reliability and efficiency that translate into better performance outcomes and reduced maintenance costs for automotive and industrial end users.
Specifications & Parameters
| Key Metric | Detailed Specification |
|---|---|
| Manufacturing | CNC Milling, Turning, and Dynamic Balancing |
| Tolerance | ±0.005mm (ISO 2768-m) |
| Material | 4140 Chromoly Steel / 6061-T6 Aluminum / Billet Alloy |
| Surface Finish | Black Oxide, Hard-coat Anodizing, or Ground Polish |
| Standard | ISO 9001:2015 / Certified FAI Reports Available |
Use Scenarios
- • High-Performance Racing: Designed for drag racing, drift builds, and track-day engines requiring rapid rev-matching and high reliability.
- • Automotive Engine Conversion: Essential for engine swaps where original flywheels are incompatible with custom transmissions.
- • Automated Industrial Machinery: Used in precision machinery as a timing reference or inertia-controlled coupling component.
Packaging, Warranty & Certifications
Export Packaging
Individually sealed in corrosion-inhibitor (VCI) bags, then packed in high-density foam-lined custom wooden crates to prevent damage.
12-Month Warranty
Covers all manufacturing defects. We offer full technical support for installation to ensure your component operates at peak performance.
Quality Compliance
ISO 9001:2015 certified. Material Test Certificates (MTC) and First Article Inspection (FAI) reports provided for all production runs.
Frequently Asked Questions
Can you manufacture based on custom CAD files?
Yes, we specialize in custom OEM manufacturing. Please upload your STEP, IGS, or DXF files for a professional DFM (Design for Manufacturing) review.
How do you ensure the flywheel balance is precise?
We use state-of-the-art dynamic balancing equipment to check rotational inertia at various speeds, ensuring the part is perfectly neutral before shipping.
